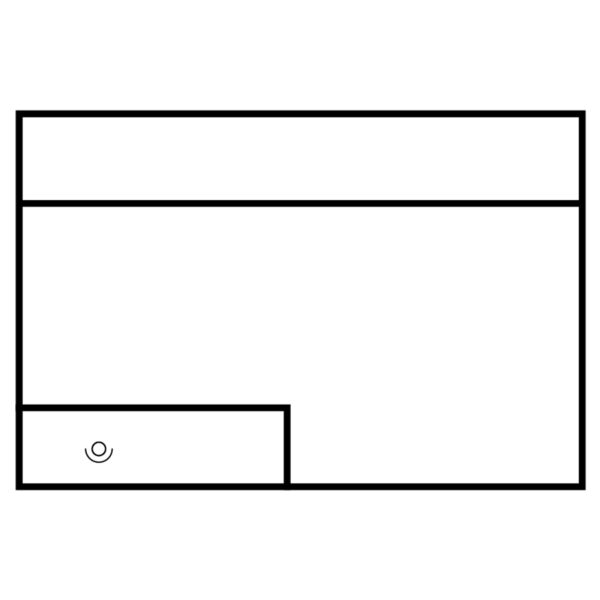

The Lean Value Stream Mapping Process Box icon denotes a process namely; cutting, stamping, shipping, procurement etc. The small symbol bottom left indicates an operator or employee. The process box forms the spine of the material flow and shows how the material moves from one workstation to another. The icon comes in a dry wipe format to enable you to write the process/workstation/department name on the first box, further details regarding the process in the second box and the number of employees and perhaps their initials next to the small symbol bottom left.
The Process box icon is part of a range of magnetic accessories to help you to create a working visual of your VSM initiative. You can purchase a complete VSM kit.
Each VSM Process Box is 6″ x 4″.
The VSM Process box is used to depict the different manufacturing processes. This could be cutting, painting, stamping among many others. It is used to display the steps of product or service delivery in your value stream and to indicate material flow.
The Value Stream Mapping magnetic Process Box icon is printed on flexible thick vehicle grade quality 0.6mm dry erase magnetic sheets with a high quality PVC gloss finish. You can use dry wipe marker pens on this product.
