Value Stream Mapping Kit

$399.77

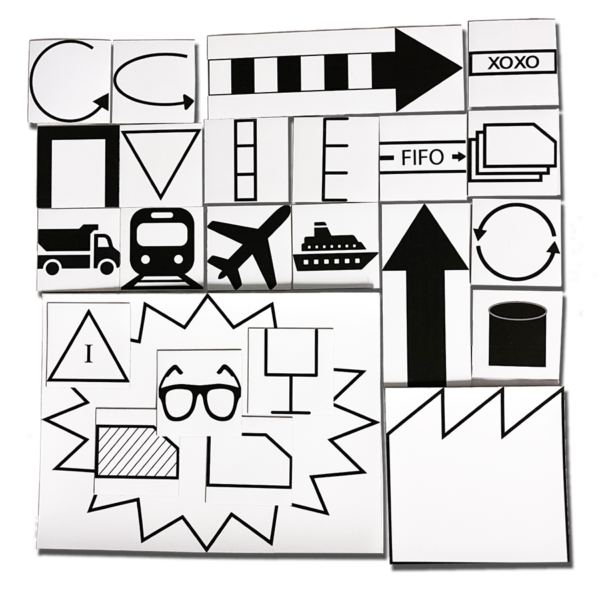

The kit consists of 27 different value stream mapping icons offered as a set of 100 pieces of printed flexible magnetic notes. The kit also contains a QR code for you to scan to see the descriptions of each icon.

Value stream mapping is a technique, developed from Lean manufacturing, that organizations use to create a visual guide of all the components necessary to deliver a product or service, with the goal of analyzing and optimizing the entire process.

Take time to familiarize yourselves with the icons, understand the procedure, collect the relevant data and then start your mapping.

Magiboards supplies a special VSM accessory pack including Dry Erase Marker Pens (in red, black, green and blue), a  microfibre cloth to clean the board and whiteboard cleaning fluid.

What are the benefits of the VSM kit?

  • Simplifies the mapping process by providing readymade icons, saving you time
  • Comes with links to 3 recommended VSM books which offer guidance on Value stream Mapping
  • Contains a printed magnetic QR code giving immediate access to a visual description of all the VSM icons
  • Gives a professional look and eliminates legibility issues
  • Comes in a three ring binder

Additional magnetic icons are available to be purchased separately on this site.

Custom icons can be made and purchased. [Email: sales@magiboardsusa.com  or Call: (888) 393-7795]

SKU: LNVSM01 Category: Tags: , ,

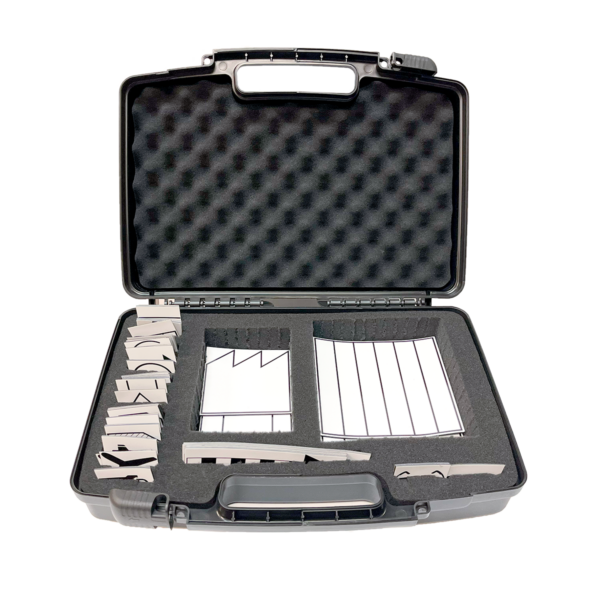

The VSM (Value Stream Mapping) kit comprises of 27 different types of icons printed on magnetic backed rubber vinyl. With over 100 magnetic icons, links to 3 VSM learning book and a handy carry case, you are ready to embark on your current and future state maps. A barcode included with the pack gives access to images and descriptions of each icon.

Value Stream Mapping (VSM) is a valuable Lean tool for understanding the current or as-is state and for visualizing your future state. It helps identify wastes and define opportunities to make improvements and guides improvements based on a strategically developed plan.

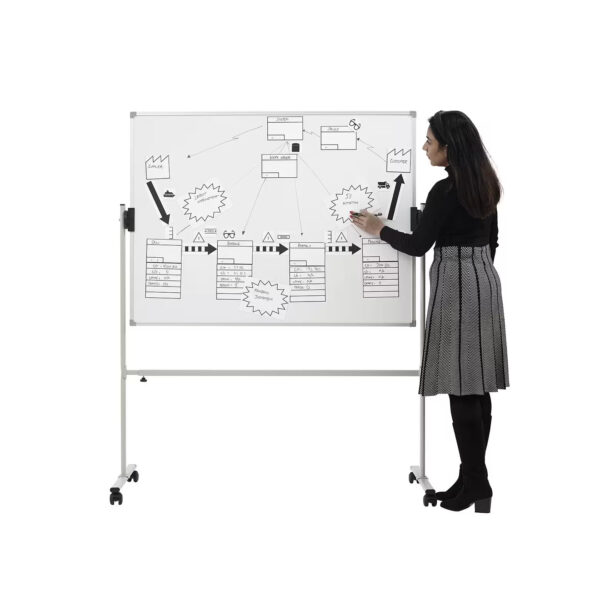

Value Stream Mapping should be more about implementing the improvements than about the mapping itself. The kit simplifies the mapping process and reduces time spent on drawing the map. It also reduces scope for legibility issues and offers a truly professional look. Current states drawn on whiteboards are erased to sketch a future state, participants are constantly referring to photos of the current state to help design a future state. This kit eliminates the need for this as the icons are also a means of recording the information and using them as a reference for analysis and developing action plans.

The data box, process box and kaizen burst consists of dry wipe material, allowing the use of a dry wipe marker on it. The kit also comes with a book that offers a step-by-step guide to value stream mapping. The whole kit comes in a three ring binder. All the icons are kept separate compartments to keep your icons stored safely when not in use.



Weight 6 lbs
Dimensions 14 × 13 × 4 in
